POSTS FOR THE SIGNS
TECHNICAL SPECIFICATIONS

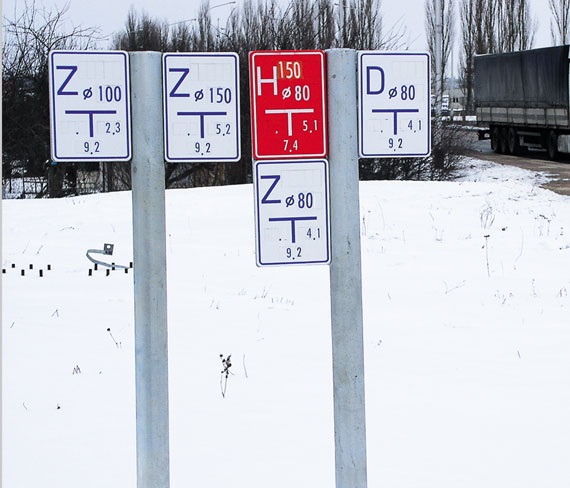

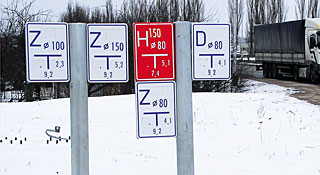

Posts for orientation signs meet the requirements of Polish standard PN-79/H-74244.
The diameter of the post from pipe 48.3 mm or 60.3 mm. The post on the top is secured by a cap made of plastic, with two brackets in the lower part. Post is galvanized, additionally painted with primer paint that protects against corrosion and topcoats paint in the colour chosen by the customer.

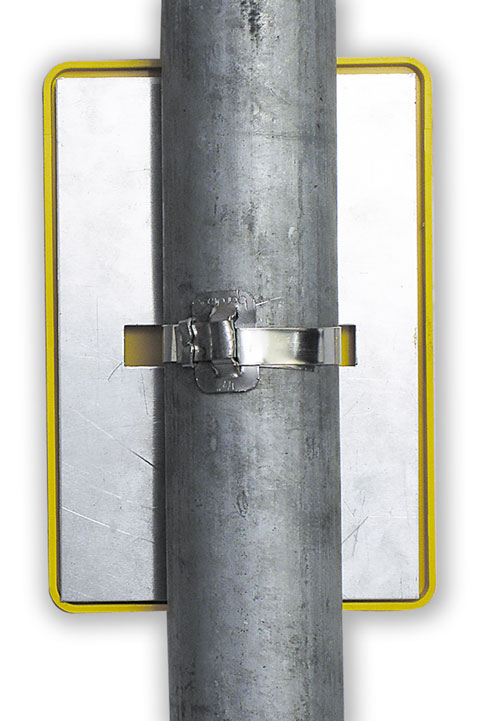

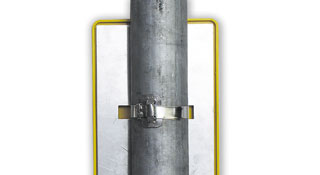

The orientation plate is mounted to the post by using aluminum washers with holes for stainless tape which circumscribes the post. Sign is bolted to the washer by screws or you can mount the sign with rivets.
